reverse recovery with LTspice

Category:

spice simulations can be very instructive, I don’t have a decent scope, though I am still able to have a look at the reverse recovery of a diode.
LTspice is free.

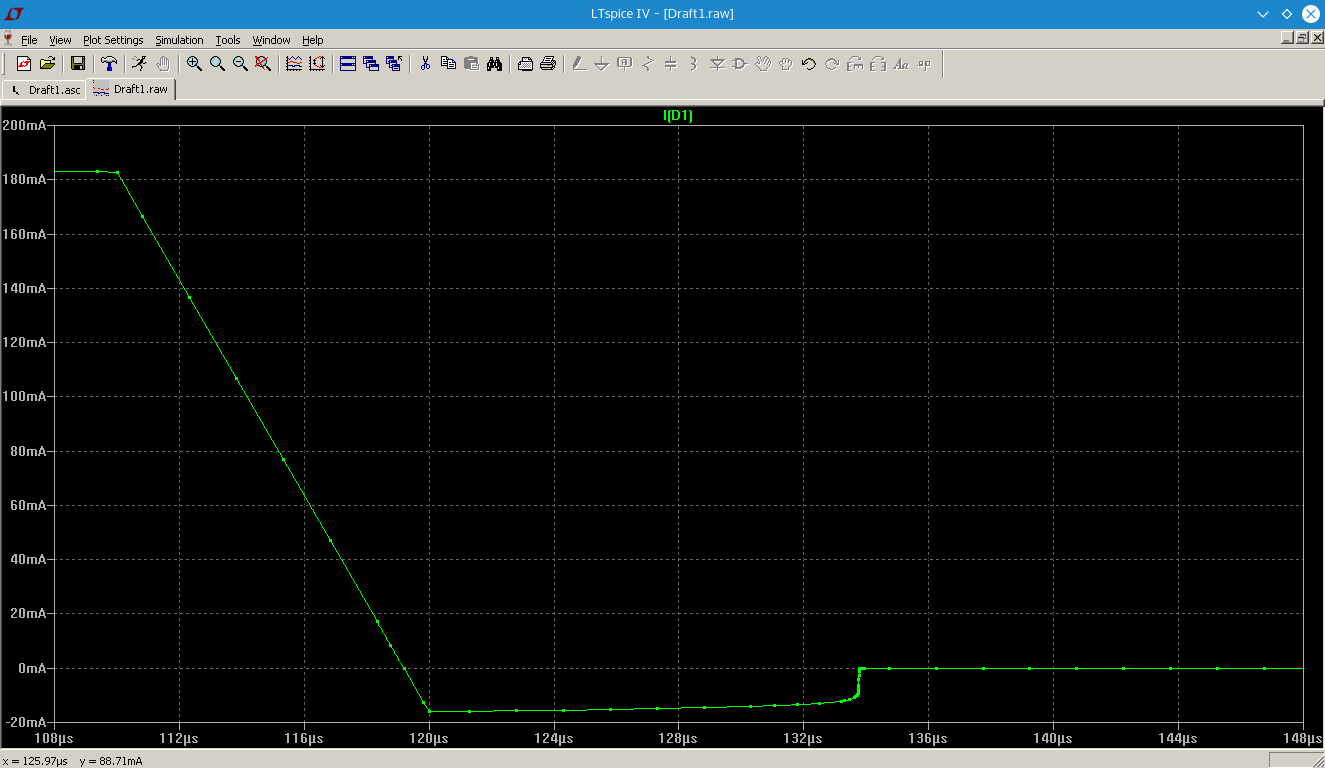

the reverse recovery current of a diode
